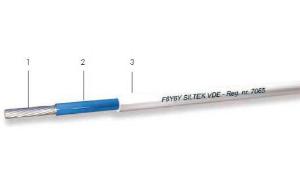

Conductor: Bare, tinned copper
Insulator: Fluoroplastic of PFA
Rated volt.: 600V
Test voltage: 2000V. 1min
Rated temp.: -60℃~+250℃
Application
AWM 10362 high temperature teflon wires are used where high flexibility is required and high temperature conditions. It is therefore a suitable connection cable for home electric appliance, instrument control and auto wire harness.
AWM | Conductor | Insulation thickness | Wire OD | Max. | |||
Section | Structure | OD | Nominal | Nominal | Toler. | Resistance | |
NO. | mm² | No./mm | mm | mm | mm | mm | Ω/KM |
26 | 0.128 | 7/0.15 | 0.50 | 0.254 | 1.0 | ±0.10 | 148 |
19/0.10 | |||||||
24 | 0.205 | 7/0.20 | 0.60 | 0.254 | 1.11 | ±0.15 | 93 |
19/0.12 | |||||||
22 | 0.324 | 7/0.25 | 0.75 | 0.254 | 1.26 | ±0.15 | 55 |
19/0.16 | 0.80 | 1.31 | |||||
20 | 0.519 | 7/0.31 | 0.95 | 0.254 | 1.46 | ±0.15 | 34.6 |
19/0.19 | |||||||
18 | 0.823 | 7/0.39 | 1.18 | 0.254 | 1.69 | ±0.20 | 21.8 |
19/0.235 | |||||||
16 | 1.31 | 7/0.49 | 1.50 | 0.254 | 2.0 | ±0.20 | 13.7 |
19/0.30 | |||||||
14 | 2.08 | 19/0.37 | 1.85 | 0.254 | 2.36 | ±0.20 | 8.62 |
12 | 3.31 | 19/0.48 | 2.4 | 0.254 | 2.90 | ±0.20 | 5.43 |
10 | 5.26 | 37/0.43 | 3.02 | 0.254 | 3.52 | ±0.20 | 3.41 |
Mechanical Properties
Tensile strength: ≥17.2N/mm2
Elongation at break of insulation: ≥200%
Min. bending radius: 6×OD
Standard: UL758, UL62 and UL1581
Meet with RoHS, REACH rules.
Characteristics
AWM 10362 high temperature Teflon wire has very good flexibility and good performance of resistance to high and low temperature, range from -60℃ up to 250℃.
The use of fluoroplastic, also called Teflon, abbreviated as FEP, PFA, and ETFE is a transparent material. It can be added with other agents like color powder. It has high corona resistance, excellent impact resistance and distortion resistance. The flexibility under low temperature is excellent. Teflon wire is non-toxic and non-viscous. In addition, it has stable performance of resistance to chemical, solvent, oil etc.
