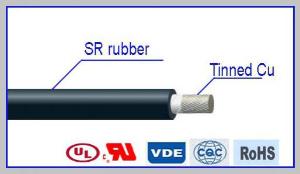

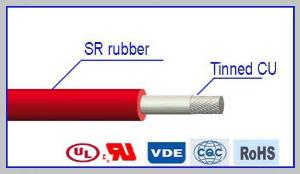

Conductor: Bare copper, tinned copper
Insulator: Silicone rubber
Rated volt.: 600V
Test voltage: 2000V. 1in
Rated temp.: -60℃～+200℃
Flame test: FT2
Application
AWM 3512 heat resistant silicone rubber wires are used where high flexibility is required and high temperature conditions. It is therefore a suitable connection cable for home electric appliance, high voltage machines like transformers, generators, motors, traction machines.
| Conductor | Insulation | Wire OD | Resistance | |||
| Size | Construction | OD | Nominal | Nominal | Toler. | Ω/KM |
| mm² | No./mm | mm | mm | mm | mm | Max. |
| 0.50 | 16/0.20 | 0.95 | 0.76 | 2.5 | ±0.10 | 40.1 |
| 0.75 | 24/0.20 | 1.15 | 0.76 | 2.7 | ±0.15 | 26.7 |
| 1.0 | 32/0.20 | 1.34 | 0.76 | 2.9 | ±0.15 | 20.0 |
| 1.5 | 30/0.25 | 1.60 | 0.76 | 3.2 | ±0.20 | 13.7 |
| 2.0 | 41/0.25 | 1.90 | 0.76 | 3.5 | ±0.20 | 9.9 |
| 2.5 | 49/0.25 | 2.00 | 0.76 | 3.6 | ±0.20 | 8.21 |
| 4 | 56/0.30 | 2.70 | 0.76 | 4.3 | ±0.20 | 5.09 |
| 6 | 84/0.30 | 3.30 | 1.14 | 5.6 | +0.30 | 3.39 |
| -0.20 | ||||||
| 10 | 84/0.40 | 4.60 | 1.52 | 7.7 | +0.30 | 1.95 |
| -0.20 | ||||||
| 16 | 126/0.40 | 5.80 | 1.52 | 8.9 | +0.30 | 1.24 |
| -0.20 | ||||||
| 25 | 196/0.40 | 7.30 | 1.52 | 10.4 | +0.30 | 0.795 |
| -0.20 | ||||||
| 35 | 276/0.40 | 8.60 | 1.52 | 11.7 | +0.30 | 0.565 |
| -0.20 | ||||||
| 50 | 396/0.40 | 10.7 | 2.0 | 14.7 | +0.40 | 0.393 |
| -0.20 | ||||||
| 70 | 360/0.50 | 12.4 | 2.0 | 16.4 | +0.40 | 0.277 |
| -0.20 | ||||||
| 95 | 475/0.50 | 14.5 | 2.0 | 18.5 | +0.40 | 0.210 |
| -0.20 | ||||||
| 120 | 608/0.50 | 16.0 | 2.4 | 20.8 | +0.40 | 0.164 |
| -0.20 | ||||||
| 150 | 756/0.50 | 18.0 | 2.4 | 22.8 | +0.60 | 0.132 |
| -0.30 | ||||||
| 185 | 925/0.50 | 20.0 | 2.4 | 24.8 | +0.60 | 0.108 |
| -0.30 | ||||||
| 240 | 1221/0.50 | 23.0 | 2.4 | 27.8 | +0.60 | 0.0817 |
| -0.30 |
||||||
Mechanical Properties
Tensile strength: 3.45N/mm2 min.
Elongation at break of insulation: ≥100%
Min. bending radius: 6×OD
Standard: UL758, UL62 and UL1581
Meet with RoHS, REACH rules.
Characteristics
Silicone rubber wire & cable have very good flexibility and good performance of resistance to high temperature, range from -55℃ up to 150℃.
The use of silicone rubber, a high grade corona resistant insulation material, gives the AWM 3512 heat resistant silicone rubber wire excellent dielectric strength.
