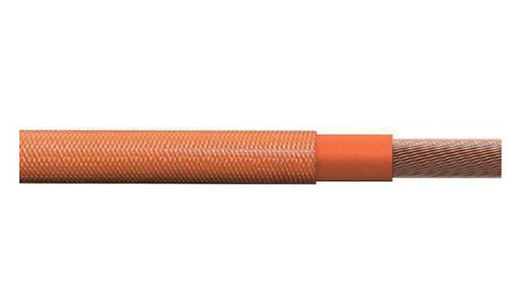

FHLR2GL FHLR2GL Silicone Rubber Unshielded Cable for Hybrid and EV

FHLR2GL FHLR2GL Silicone Rubber Unshielded Cable for Hybrid and EV

Conductor:bare copper
Insulator: silicone rubber
Jacket: PET yarn with varnish coating Color: Orange
Rated Volt.:AC600/DC900V
Voltage test: AC5000/5 Min.
Rated Temp.:-60℃~+180℃

Mechanical Properties
Tensile strength: 7.5N/mm2 min.
Elongation at break of insulation: ≥200%
Min.Bending radius: 6×OD (Dynamic installation)

Characteristics
Silicone rubber wire and cable offer very good flexibility and temperature resistance. It can withstand a temperature range from -55℃ up to 180℃.
The use of silicone rubber, a high grade corona resistant insulation material, gives the cable excellent dielectric strength. By using PET yarn braiding with varnish coating, it will maximize its abrasion resistance.

Application
It is an outstanding connection cable between HV batteries to the engine wiring of Hybrid and pure electric vehicles.

Technical Parameters

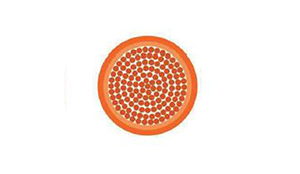

Conductor core
Cross section stranded diameter Resistance at 20℃ diameter
[mm] [mm] max[mm] max[Ω/KM] [mm]
10 320×0.21 4.5 1.82 7.1(—0.6)
12 380×0.21 5.4 1.52 8.0(—0.6)
16 512×0.21 5.8 1.16 8.9(—0.6)
20 610×0.21 6.9 0.955 9.7(—0.6)
25 790×0.21 7.2 0.743 10.6(—0.6)
30 900×0.21 8.3 0.647 11.0(—0.7)
35 1070×0.21 8.5 0.527 11.6(—0.7)
40 1200×0.21 9.6 0.473 13.0(—0.7)
50 1600×0.21 10.5 0.368 13.8(—0.8)
70 2175×0.21 12.5 0.259 15.7(—0.8)
95 3000×0.21 14.8 0.196 18.0(—1.0)
120 3700×0.21 16.5 0.153 20.1(—1.0)
