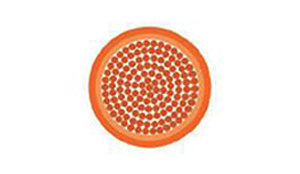

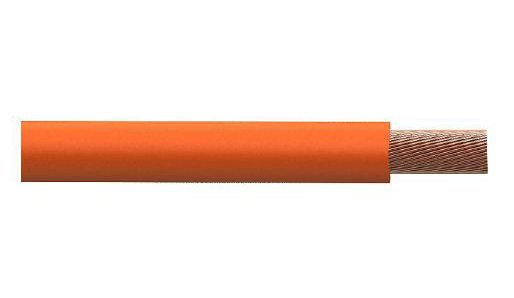

Conductor:bare copper
Insulator: silicone rubber according to ISO6722
Color: Orange (Ral 2003)
Rated Volt.:AC600/DC900V
Voltage test: AC5000/5 Min.
Rated Temp.:-60℃~+180℃
Water proof grade: IP67
Mechanical Properties
Tensile strength: 7.5N/mm2 min.
Elongation at break of insulation: ≥200%
Min.Bending radius: 3×OD (Static installation)
6×OD (Dynamic installation)
Characteristics
Silicone cable offers great flexibility and performance when it comes to withstanding high temperatures ranging from -55℃ up to 180℃.
The use of silicone rubber, a high grade corona resistant insulation material, gives the cable excellent dielectric strength.
Application
It serves as an excellent connection cable between HV batteries to the engine wiring of hybrid and purely electric vehicles.
Conductor | core | |||
Cross section | stranded | diameter | Resistance at 20℃ | diameter |
[mm] | [mm] | max[mm] | max[Ω/KM] | [mm] |
10 | 320×0.21 | 4.5 | 1.82 | 6.5(—0.6) |
12 | 380×0.21 | 5.4 | 1.52 | 7.4(—0.6) |
16 | 512×0.21 | 5.8 | 1.16 | 8.3(—0.6) |
20 | 610×0.21 | 6.9 | 0.955 | 9.0(—0.6) |
25 | 790×0.21 | 7.2 | 0.743 | 10.0(—0.6) |
30 | 900×0.21 | 8.3 | 0.647 | 10.4(—0.7) |
35 | 1070×0.21 | 8.5 | 0.527 | 11.0(—0.7) |
40 | 1200×0.21 | 9.6 | 0.473 | 12.4(—0.7) |
50 | 1600×0.21 | 10.5 | 0.368 | 13.2(—0.8) |
70 | 2175×0.21 | 12.5 | 0.259 | 15.1(—0.8) |
95 | 3000×0.21 | 14.8 | 0.196 | 17.4(—1.0) |
120 | 3700×0.21 | 16.5 | 0.153 | 19.5(—1.0) |
